Flex Extruder FN101
Equipment Introduction

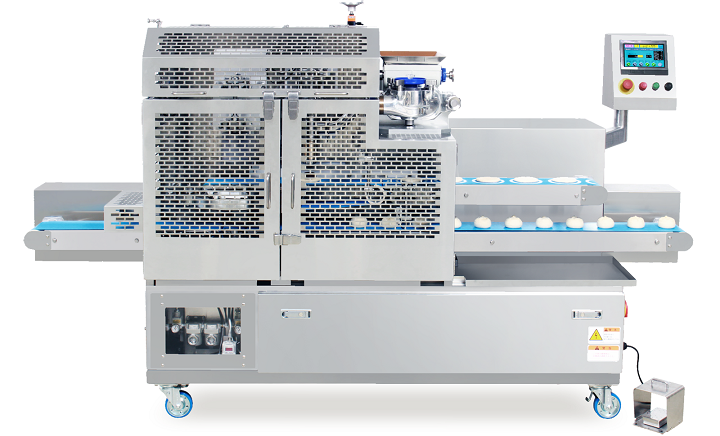

Flex Encruster FN101
Automates Encrusting Process of filled breads.

Flex Encruster automates hand wrapping work of sweet bean paste buns, curry buns, chinese steamed buns, and other products.

Features
Flex Encruster" automates "Encrusting Process" of filled sweet breads, Chinese Steamed Buns, and many other filled products.

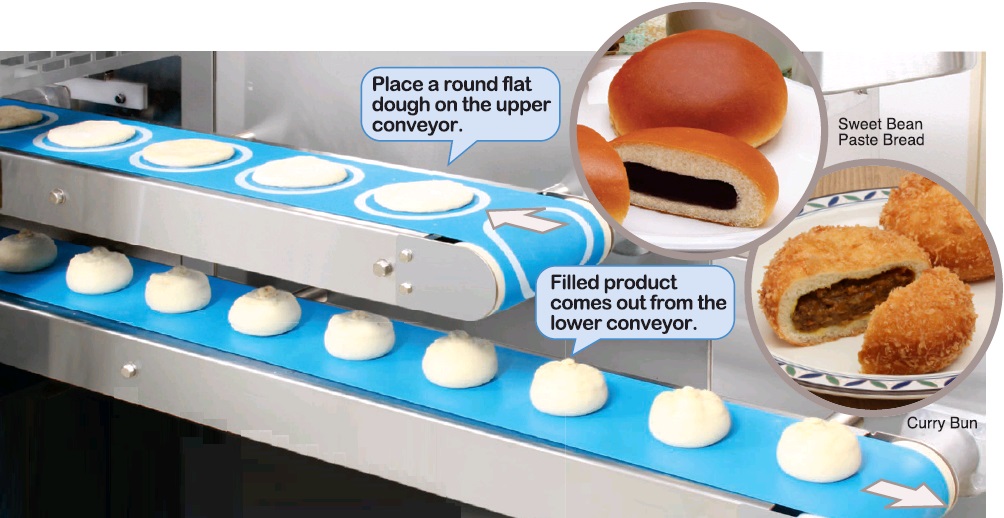

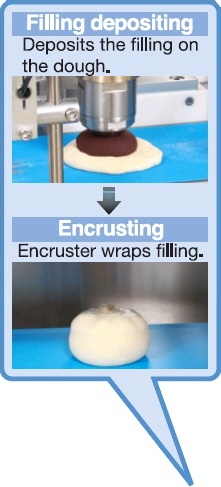

Place the circular, flat dough pieces on the upper conveyor and step on the foot switch.

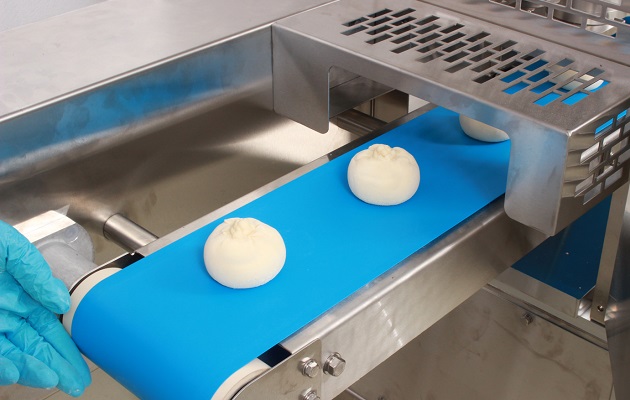

Automatically wraps the dough around the filling and discharges the products from the lower conveyor.

Easy to see Easy to use

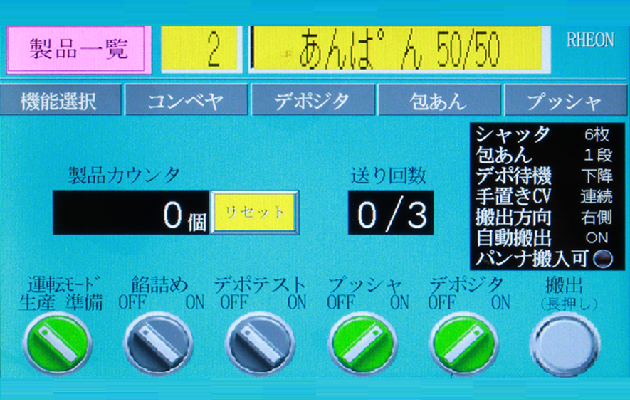

Adopted "Easy to see Easy to use" color touch panel. Furthermore, the built-in Product Memory Unit (P.M.U.) stores and recalls the production parameters.

Inexperienced person can easily produce filled products.

Left Side Operation

Discharging direction is selectable from right or left.

Dough pieces with hand deposited filling can be processed for the optimum production of the small quantity products.

Quick product changeover and easy cleaning

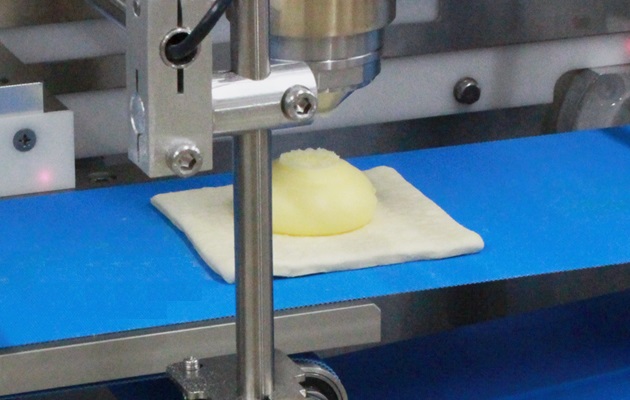

Square dough

Square, flat dough can be processed

It also expands your product range: unique various products such as with two fillings and/or solid ingredients.

Great amount of filling

A great amount of filling can be wrapped into the product

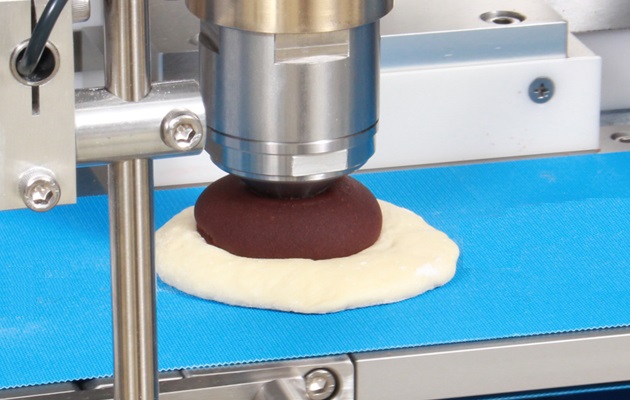

Filling depositing device (depositor) can be switched on and off


Sweet Bean Paste Bread with Chestnut
High value added products

By hand-depositing the filling beforehand, high value added products such as sweet bean paste buns with whole chestnut can be produced

Open top products

Open top product shapes also can be produced

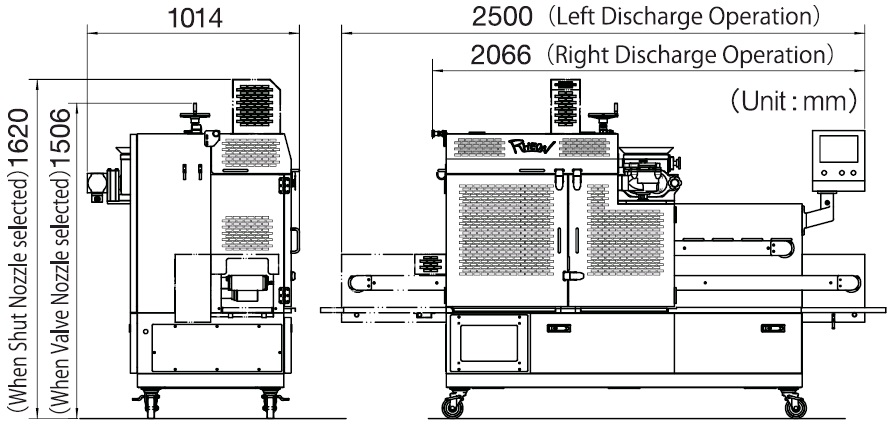

Specifications
Model Code FN101
Length 2066mm (Right Discharge Operation)
2500mm (Left Discharge Operation)
Height 1620mm
Depth 1014mm
Electrical Capacity 1.22kW
Air 0.4Mpa, 200ℓ/min.
Hopper Capacity 15ℓ
Encrusting Capacity 20pcs./min. (MAX)*
Product Weight Range 50-200g*
  • *Production speed and weight range varies depending on the material. Please make sure by running your own materials.
